The MK.IX was virtually the same as the MK.VIII with two notable differences; it was fitted with disc brakes all round and the new 3.8L XK engine, giving it much better performance and a top speed of 114mph. Power assisted steering was also fitted as standard and the heating unit was uprated. Later models had larger rear lights incorporating red and amber lenses on a much bigger plinth. Just over 10,000 cars had been produced by the time production ceased in September 1961.
Mk 9 WIRING DIAGRAM BOOKLET
17 page booklet with comprehensive wiring diagrams for the Mk 9 Jaguar.
£22 (plus VAT and postage)

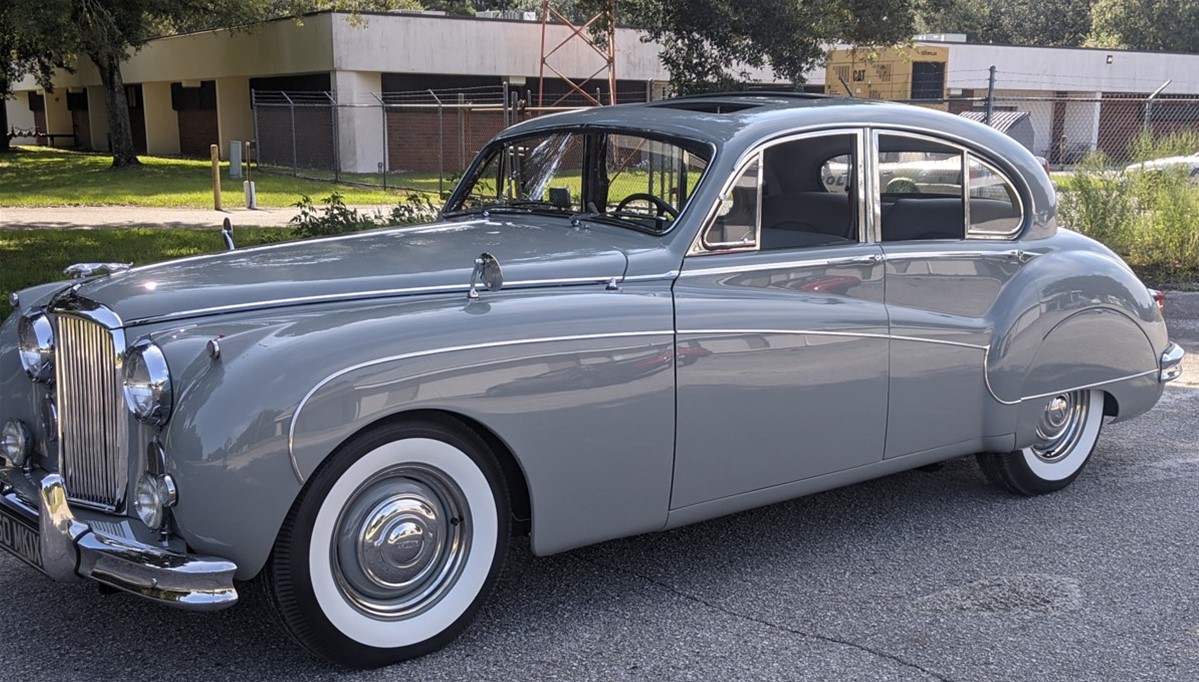

Many thanks to Mr Berghoefer for these photos of his lovely car.
There is a Facebook Group dedicated to Jaguar Mk 7/8/9 – Grace, Space & Pace
NOW IN STOCK:
BR108 (Jaguar 7789) Retaining plate for friction pad – front. For Mk 9s with disc brakes.
NOW IN STOCK:
M131 (Jaguar 5903) Air cleaner element for Vokes cylindrical air filter.
A comprehensive range of parts is available including disc brake parts, body fittings and steering components as well as a large selection of repair panels (panels usually need to be ordered in).
Alternatively, you can email us with your address details and we can mail a brochure to you.
Toolbox Restoration

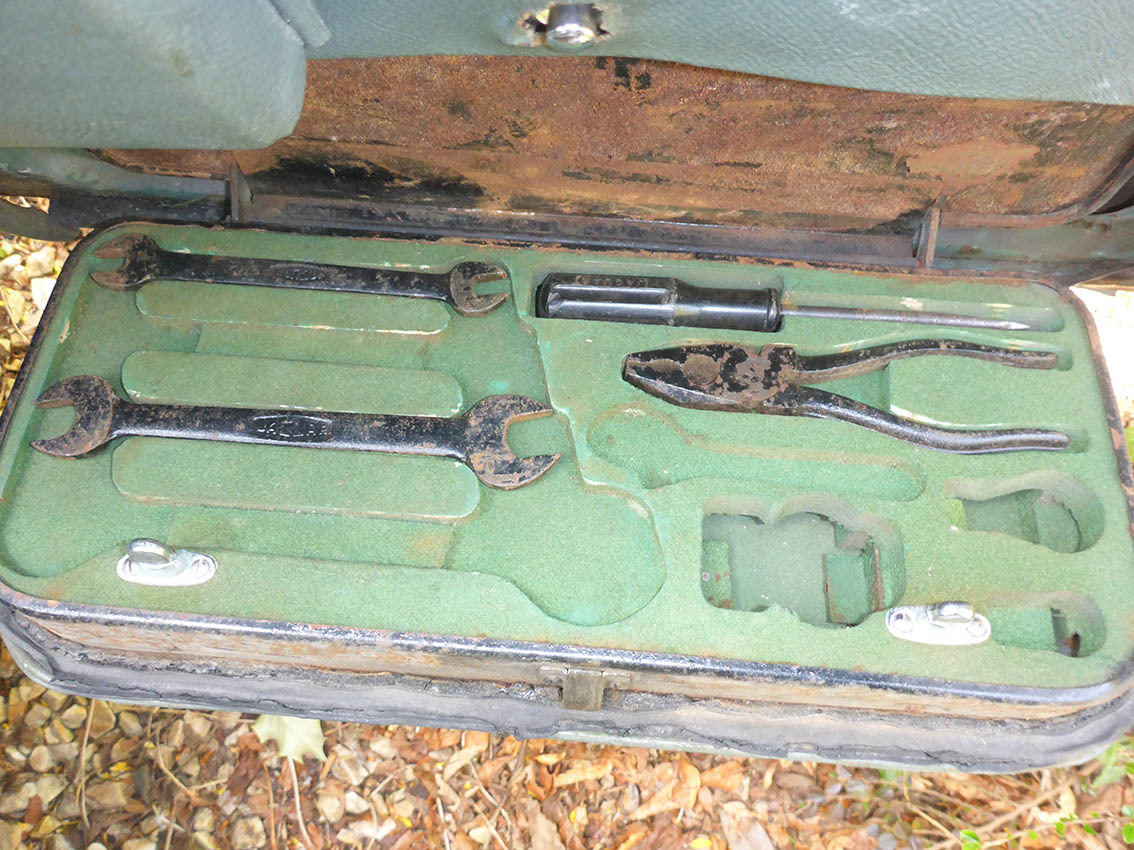

Before and after photos showing a customer’s restoration of his own toolboxes. They originally had green interiors, but these toolboxes have been custom restored to match the colour of the car. The gentleman who restored these toolboxes is happy to give suggestions/advice to anyone who wishes to give it a go themselves – please email us for his contact details (info@worcesterclassicspares.com).
