Repair Panels

We currently stock a range of repair panels, mostly for the Mk 7/8/9 cars, but due to the amount of space they occupy, we will be moving to an order-in system once our current stock is sold.

All panels listed will still be available, but only to order, few will be kept in stock.  We strongly recommend that panels are ordered well in advance of use, as the waiting time for panels can often be as long as 6 months!

Up to date prices can be found in the PDF downloadable lists (on the home page) but the following diagrams may be useful:

Panels for Mk 5

Please note: P45 is also suitable for Mk 4 cars

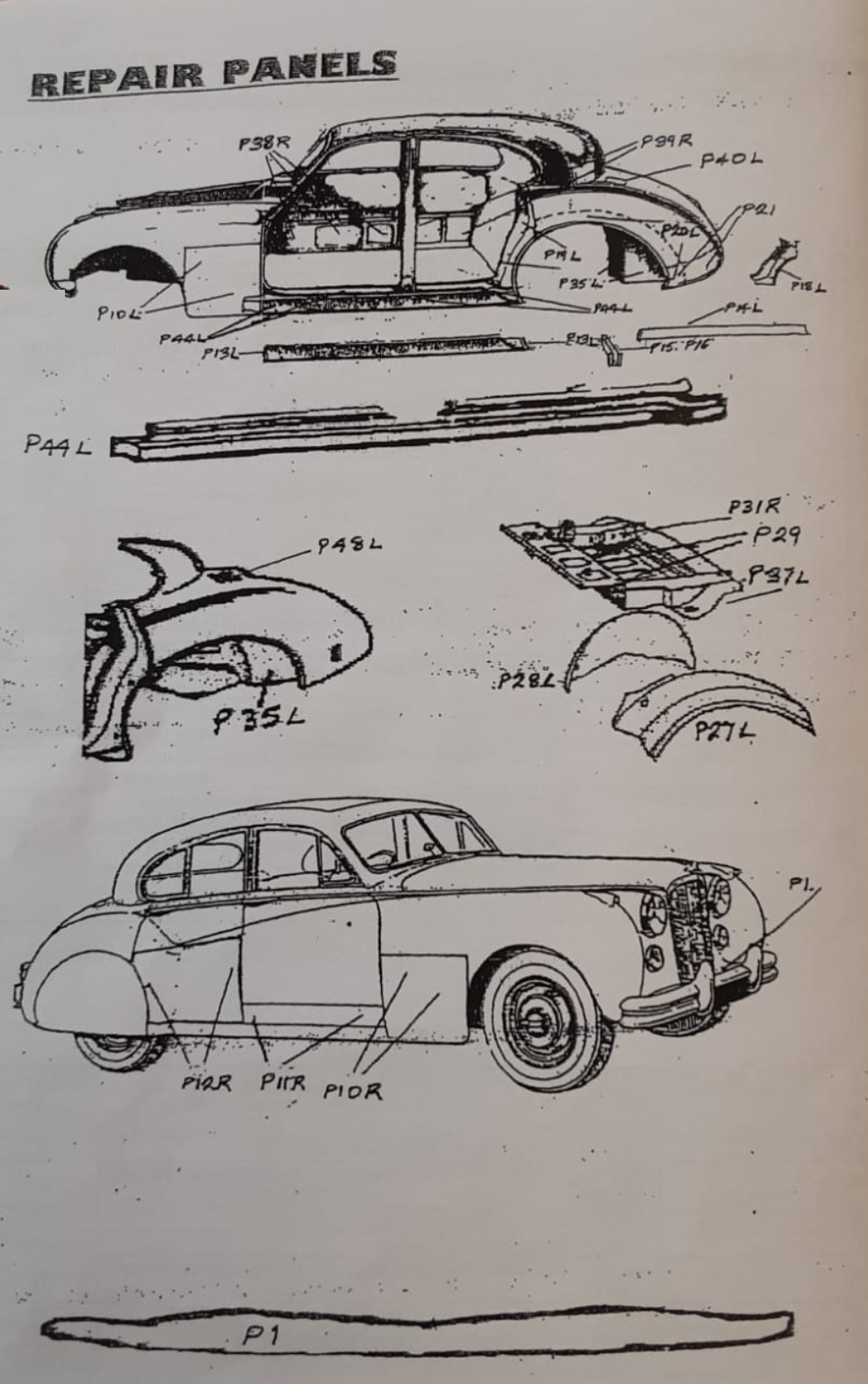

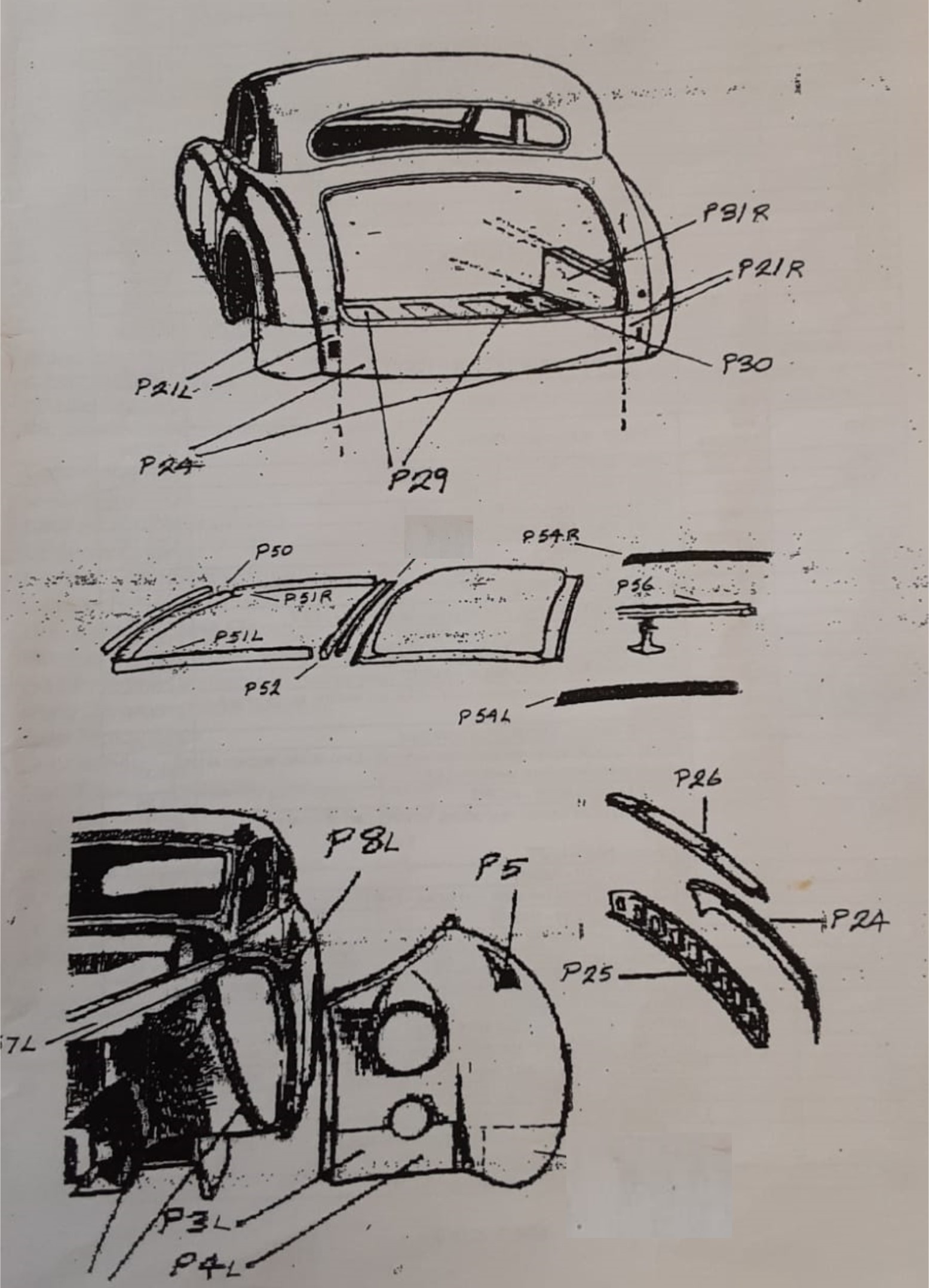

Panels for Mk 7, 8 & 9

P1

Front Valance

P3L & P3R

Bottom of Front Wing

P4L & P4R

Bottom of Front Wing

P5

Front Sidelight Pod

P8L & P8R

Front Wing Diaphragm Splash Panel

P9L & P9R

Front Wing Splash Panel Fixing Plate

P10L & P10R

Front Wing Lower Section

P11L & P11R

Front Door Outer Skin

P12L & R12R

Rear Door Outer Skin

P13L & P13R

Outer Sill

P14L & P14R

Inner Sill

P15

Front Outrigger Bracket

P16

Middle Outrigger Bracket

P17

Rear Outrigger Bracket

P18L & P18R

‘D’ Post – three quarter length

P19L R19R

‘D’ Post – full length

P20L & P20R

Rear Wheel Arch

P21L & P21R

Rear Wing Rear Section

P24

Rear Valance

P25

‘Rear Valence Inner Panel

P26

Boot Locking Panel

P27R & P27L

Rear Wing Rear Section

P28L & P28R

Rear Inner Wheel Arch

P29

Boot Floor

P30

Spare Wheel Section

P31L & P31R

Boot Floor Side

P35L & P35R

Box Section

P37L & P37R

Floor Section

P38L & P38R

Bottom and Inner Panel

P39L & P39R

Bottom and Inner Panel

P40L & P40R

Lid for Petrol Filler Box

P44L & P44R

Complete Outer Sill

P50

Sunroof Channel

P51L & P51R

Sunroof Channel

P52

Sunroof Stiffener

P54L & P54R

Sunroof Channel

P56

Centre Stiffener

P57L & P57R

Repair Panel
